Prodajni Inox Asortiman

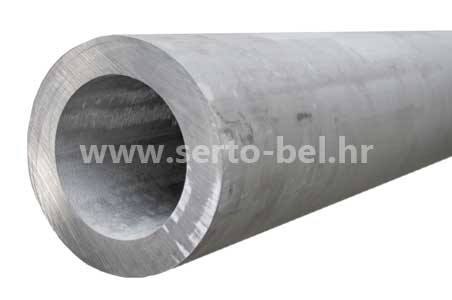

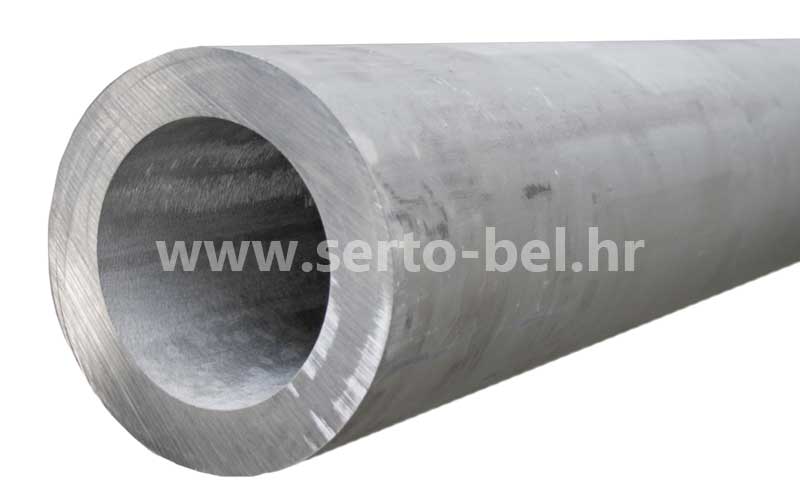

Inox debelostijene cijevi
Nudimo Inox debelostijene cijevi prema EN 10216-5 standardu i u sljedećim kvalitetama materijala:
AISI 304 - AISI 316L
Certifikati prema EN 10204/3.1
Inox debelostijene cijevi: Vanjski promjer Ø 32 - Ø 106 mm
| VANJSKI PROMJER mm | UNUTARNJI PROMJER mm | GARANTIRANE DIMENZIJE NAKON OBRADE | TEŽINA kg/m | |||
| DIMENZIJE PO VANJSKOM PROMJERU | DIMENZIJE PO UNUTARNJEM PROMJERU | |||||
| Max. Ø vanj. mm | Min. Ø unu. mm | Max. Ø vanj. mm | Min. Ø unu. mm | |||
| 32 32 | 16 20 | 31,0 31,0 | 18,0 22,0 | 30,0 30,0 | 17,0 21,0 | 5,0 4,3 |
| 36 36 36 | 16 20 25 | 35,0 35,0 35,0 | 18,5 22,0 27,0 | 34,0 34,0 34,0 | 17,0 21,0 26,0 | 6,9 6,0 4,6 |
| 40 40 40 | 20 25 28 | 39,0 39,0 39,0 | 22,5 27,0 30,0 | 38,0 38,0 38,0 | 21,0 26,0 29,0 | 7,9 6,5 5,6 |
| 45 45 45 | 20 28 32 | 44,0 44,0 44,0 | 22,5 30,5 34,1 | 43,0 43,0 43,0 | 21,0 29,1 33,0 | 10,6 8,3 6,8 |
| 50 50 50 | 25 32 36 | 49,0 49,0 49,0 | 27,2 34,0 38,0 | 48,0 48,0 48,0 | 26,0 33,0 37,0 | 12,5 9,9 8,2 |
| 56 56 56 | 28 36 40 | 55,0 55,0 55,0 | 30,5 38,5 42,0 | 54,0 54,0 54,0 | 29,0 37,0 41,0 | 15,5 12,2 10,4 |
| 63 63 63 63 | 32 36 40 50 | 62,0 62,0 62,0 62,0 | 34,5 38,5 42,5 52,5 | 60,5 60,5 60,5 61,0 | 33,0 37,0 41,1 51,0 | 19,4 17,6 15,8 10,1 |
| 71 71 71 71 | 36 40 45 56 | 69,5 69,5 69,5 69,5 | 38,5 42,5 47,7 58,1 | 68,5 68,5 68,5 68,5 | 37,0 41,0 46,0 57,0 | 24,8 22,7 20,1 13,2 |
| 75 | 40 | 73,5 | 42,5 | 72,0 | 41,0 | 26,6 |
| 80 80 80 | 40 50 63 | 78,5 78,5 78,5 | 43,0 52,5 65,5 | 77,0 77,0 77,5 | 41,0 51,0 64,0 | 31,6 25,9 16,8 |
| 85 | 45 | 83,5 | 48,0 | 82,0 | 46,0 | 34,1 |
| 90 90 90 90 | 50 56 63 71 | 88,5 88,5 88,5 88,5 | 53,0 58,5 63,5 73,5 | 87,0 87,0 87,0 87,5 | 51,0 57,0 64,1 72,6 | 37,2 32,8 27,9 21,2 |
| 95 | 50 | 93,5 | 52,0 | 91,0 | 51,0 | 42,8 |
| 100 100 100 100 | 56 63 71 80 | 98,5 98,5 98,5 98,5 | 59,0 65,6 73,5 82,6 | 96,5 96,5 97,0 97,0 | 57,0 64,0 72,5 81,5 | 45,1 39,8 33,4 24,9 |
| 106 106 106 106 | 56 63 71 80 | 104,0 104,0 104,0 104,0 | 59,0 66,0 74,0 82,5 | 102,5 102,5 102,5 103,0 | 57,0 64,0 72,5 81,5 | 53,3 48,2 41,4 32,9 |
