Prodajni Inox Asortiman

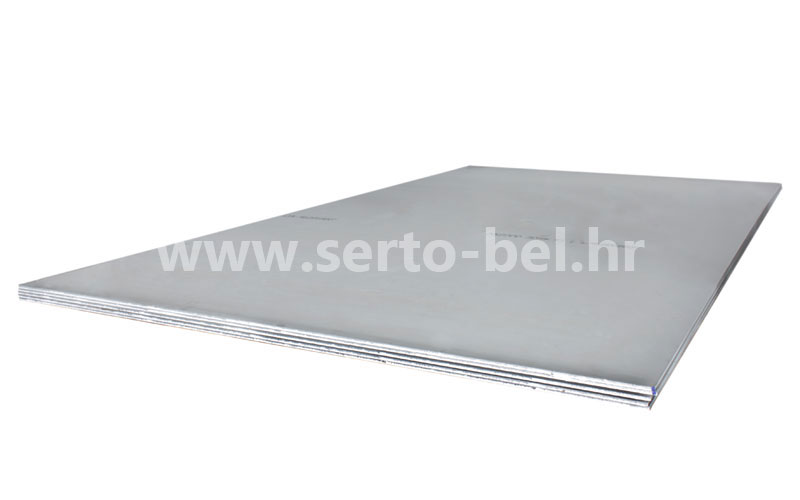

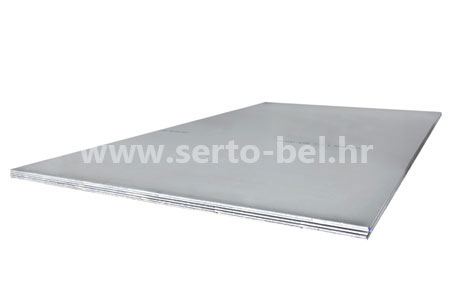

Inox toplo valjani limovi


Nudimo Inox toplo valjane limove prema EN 10088-2, EN 10028-7, ISO 9444 standardu i u sljedećim kvalitetama materijala:

AISI 304 - AISI 304L - AISI 321
AISI 316L - AISI 316 Ti - AISI 430
AISI 309S - AISI 310S

Obzirom na tehnološke postupke izrade Inox toplo valjanih limova nudimo:
  • F1 (IIa) - toplo valjano, luženo
Inox toplo valjani limovi
Komercijalni oblici:
  • ploče standardnih dimenzija
  • ploče rezane na mjeru, koluti, (samo prema upitu)
Certifikati prema EN 10204/3.1, prema zahtjevu PED i AD-W
FORMAT
mm
DEBLJINA (mm)
5,06,08,010,012,015,0
1000x200080,096,0128,0160,0192,0240,0
1000x3000120,0144,0192,0240,0288,0360,0
1000x4000160,0192,0256,0320,0384,0480,0
1250x2500125,0150,0200,0250,0300,0375,0
1250x3000150,0180,0240,0300,0360,0450,0
1250x4000200,0240,0320,0400,0480,0600,0
1500x3000180,0216,0288,0360,0432,0540,0
1500x4000240,0288,0384,0480,0576,0720,0
1500x6000360,0432,0576,0720,0864,01080,0
2000x4000320,0384,0512,0640,0768,0960,0
2000x6000480,0576,0768,0960,01152,01440,0
2500x6000600,0720,0960,01200,01440,01800,0
FORMAT
mm
DEBLJINA (mm)
20,025,030,035,040,050,0
1000x2000320,0400,0480,0560,0640,0800,0
1000x3000480,0600,0720,0840,0960,01200,0
1000x4000640,0800,0960,01120,01280,01600,0
1250x2500500,0625,0750,0875,01000,01250,0
1250x3000600,0750,0900,01050,01200,01500,0
1250x4000800,01000,01200,01400,01600,02000,0
1500x3000720,0900,01080,01260,01440,01800,0
1500x4000960,01200,01440,01680,01920,02400,0
1500x60001440,01800,02160,02520,02880,03600,0
2000x40001280,01600,01920,02240,02560,03200,0
2000x60001920,02400,02880,03360,03840,04800,0
2500x60002400,03000,03600,04200,04800,06000,0

Toplo valjane inox limove možemo ponuditi u debljinama od 2,0 do 100,0 mm.

Dimenzije za isporuku toplo valjanih Inox limova:
  • U kolutu i pločama:
    • - 2,0 mm ŠIRINA MAX.: 1000 mm
    • - 2,5 mm ŠIRINA MAX.: 1250 mm
    • - 3,0 mm ŠIRINA MAX.: 1500 mm
    • - 4,0 – 12 mm ŠIRINA MAX.: 2000 mm
  • U pločama:
    • - 4,0 – 50,0 mm MAX.DIM.PLOČE 2500x6000
